waveshare 1.69inch LCD Display Module, 240×280 Resolution IPS Screen Display 262K Display Color ST7789V2 Driver chip SPI Interface, for Raspberry Pi, Arduino, STM32, etc.

Posted by

b.bhipksa

2026-02-11

On 2026-02-11

Price: $14.39
(as of Feb 11, 2026 08:16:49 UTC – Details)

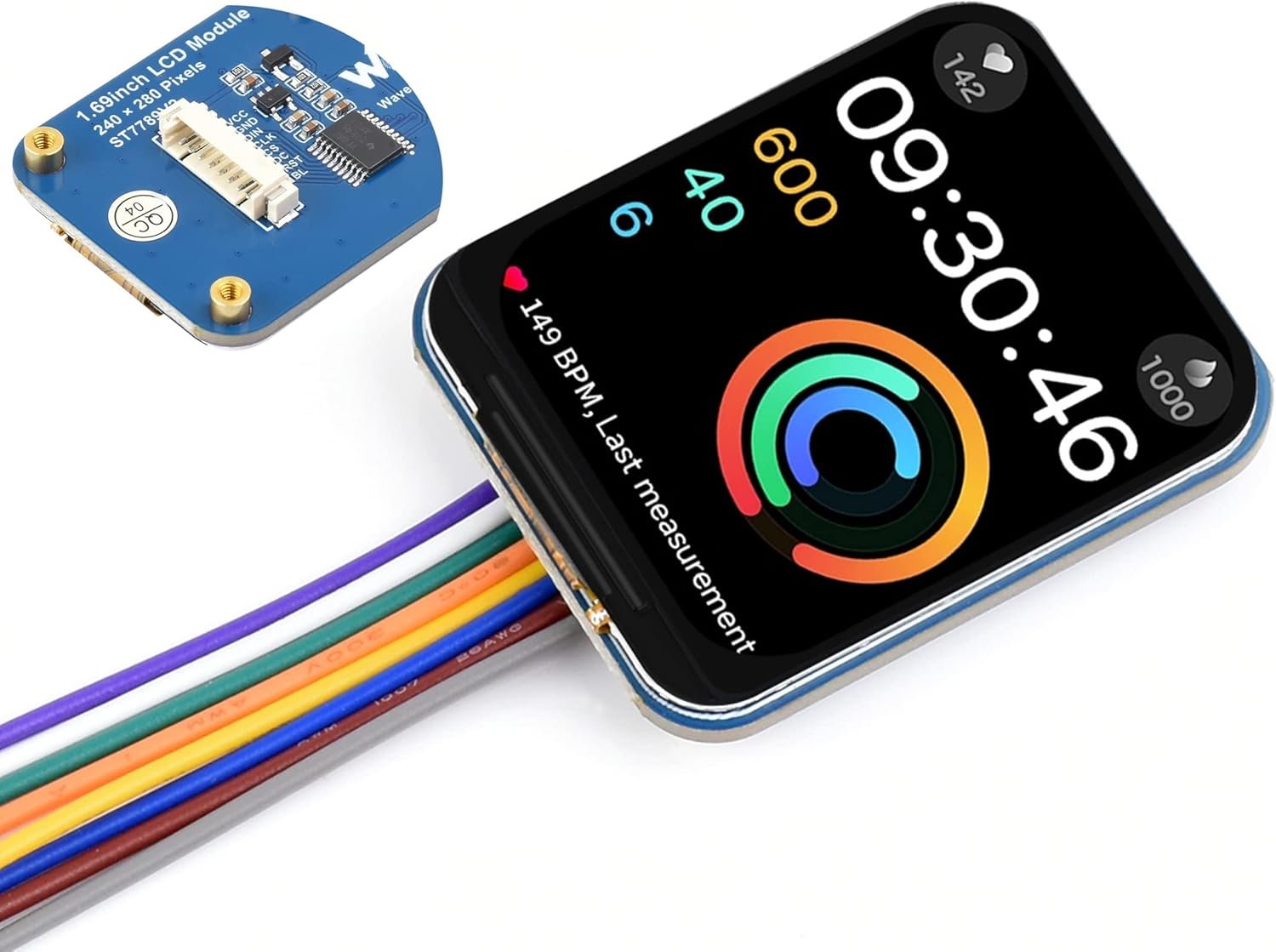

1.69inch LCD Display Module, Embedded ST7789V2 driver chip, Using SPI Interface.
Features
240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Specifications
Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are the same, otherwise it will not work properly.)
Communication interface: SPI
Display Panel: IPS
Control chip: ST7789V2
Resolution: 240 (H)RGB × 280(V)
Display size: 27.972mm × 32.634mm
Display R angle: 4-R5 (mm)
Pixel pitch: 0.11655mm × 0.11655mm
Dimensions: 31.5mm × 39.0mm
Online Development Resources /User Manuall://bit.ly/3MpuOsW
Package Content
1.69inch LCD Module x1
GH1.25 20cm 8-Pcable x1

240×280 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32.
Embedded ST7789V2 driver chip, IPS Screen.
Operating voltage: 3.3V/5V (Please ensure that the power supply voltage and logic voltage are the same, otherwise it will not work properly.)
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
