VSDISPLAY 7″ 7 inch 800×600 4:3 CLAA070MA0ACW LCD Screen TFT Monitor and LCD Controller Board 60 pin

Posted by

b.bhipksa

2026-02-13

On 2026-02-13

Price: $79.00
(as of Feb 13, 2026 15:27:03 UTC – Details)

Input LCD Controller Board:
LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input
Standby Model <1W
Video Input:
OSD: Brigtness Contrast Auto Language And So On
Language:English French German Spanish Italian And So On
Board Size:74mm x 53mm x 12mm

7″ 800×600 LCD Screen CLAA070MA0ACW:
Display Mode N, Normally White, Transmissive
Resolution 800RGB)×600
Outline Size 154 × 119.2 (H×V)
Display Area 141.6 × 106.2 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR?10) [Left / Right / Up / Down]
Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins
Backlight WLED
Input Voltage 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

Package content:
1× LCD Controller Board
1×7inch CLAA070MA0ACW 800X600 4:3 LCD Screen

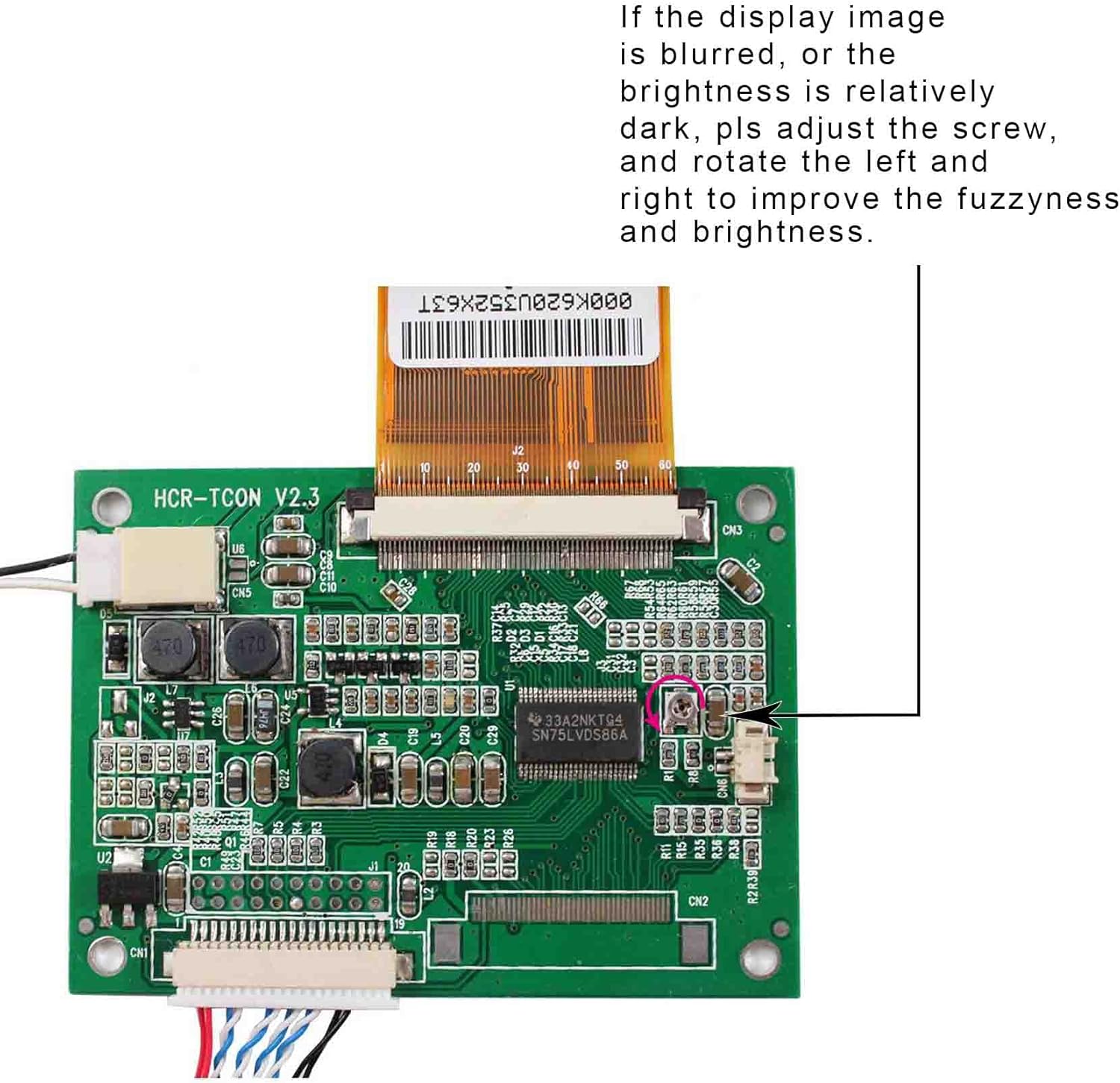

1× LVDS-TTL Tcon Board HCR-TCON-V2
1× Cable
1× Keyboard With Cable

Note:
1.Power Supply is NOT included
2.If you dont know how to connect the Screen,please feel free to contact us
【Screen Advantage】7 inch 800×600 TFT LCD Screen, display area is 141mm×106mm, 250nit good brightness ,viewing angle 70/70/50/70 ,TTL signal interface connector 60 pins ,WLED backlight WLED .
【LCD Controller Board 】 Video input: H/D,Support transfer Audio,Please use in insulated environment.
【Input Power Supply】12V DC 2A, port size :5.5×2.1mm,Pls prepare power adapter by yourself.
Advantage:This 4:3 aspect ratio panel with port ,can connect with Laptop ,pc ,RPI and other device with connection. Widely working as a sub display ,or sim monitor ,etc.
Any problem ,Pls provide some connecting pictures to showing the problem .We will give you best solution in 12 hours.
