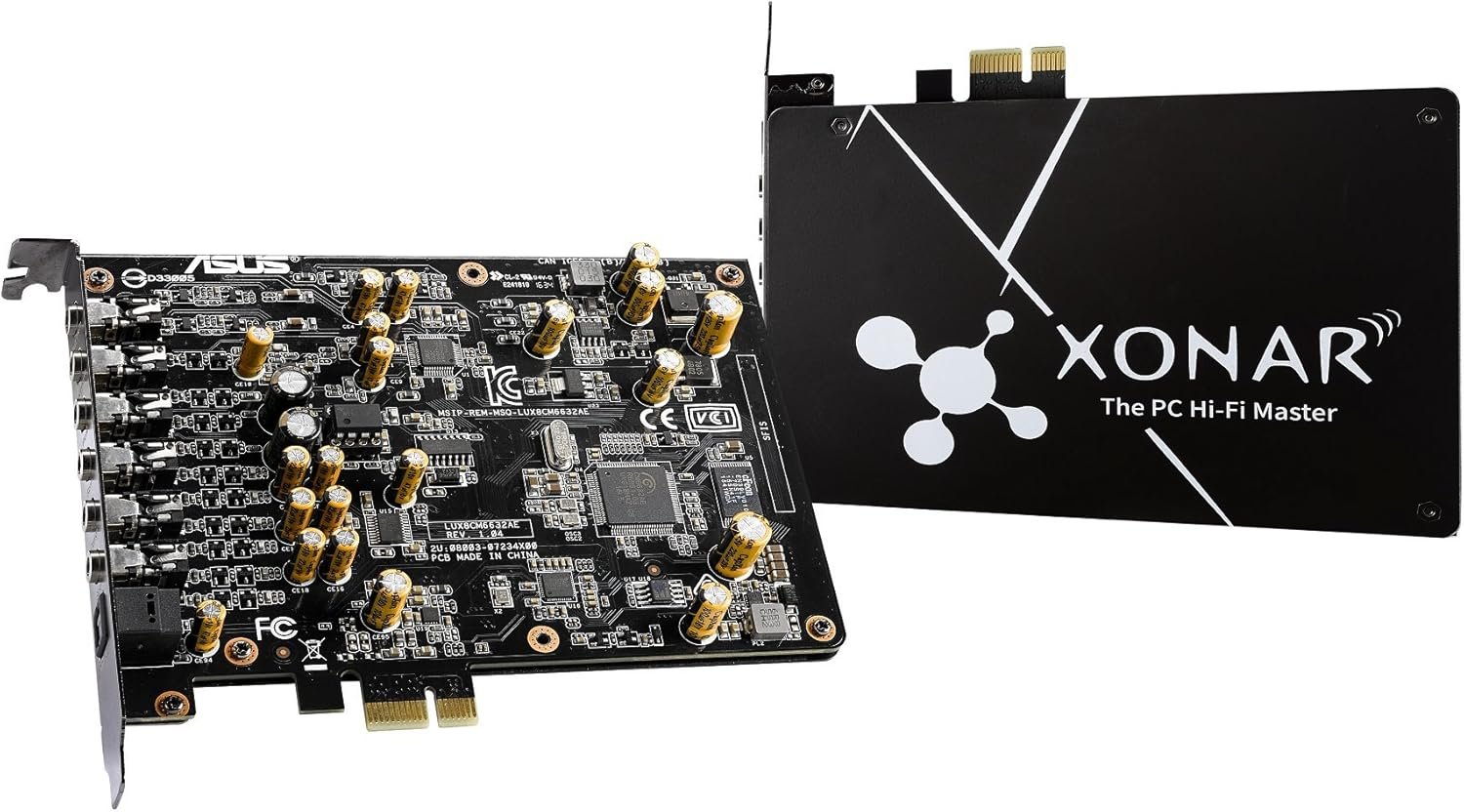

Asus Xonar AE Sound Board 7.1 PCIe Gaming Sound Card with 192kHz/24-bit Hi-Res Audio Quality, 150ohm Headphone amp, DAC, and Exclusive EMI Back Plate
Price: $79.99
(as of Feb 03, 2026 05:56:53 UTC – Details)
Specifications Mfr Part Number: XONAR AE Features: 192kHz/24-bit Hi-Res audio and 7. 1-channel, 150ohm headphone amp High-quality ESS DAC with 110dB signal-to-noise ratio (SNR) Exclusive EMI back plate provides noise shielding for exceptionally clear audio Sonic Studio enables full audio control via an intuitive, one-page interface Perfect Voice technology eliminates background noise for clear in-game communication Audio Interface: PCI Express Audio Performance: Output Signal-to-Noise Ratio (A-Weighted): 110dB (Front-out), 108 dB (Headphone-out) Input Signal-to-Noise Ratio (A-Weighted): 103 dB Output THD+N at 1kHz (Front-out): <0. 00158% (-96dB) Input THD+N at 1kHz: <0. 0022% (-93dB) Frequency Response (-3dB, 24-bit/192kHz input): 10Hz to 65KHz Chipset: Audio Processor: C-Media USB2. 0 6632AE High-Definition Sound Processor (Max 192KHz/24bit) Digital-to-analog Converter(DAC)‹: ESS ES9023P (112dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4245 (104dB DNR, Max. 192KHz/24bit), Cirrus Logic CS4361(103dB DNR, Max. 192KHz/24bit) Sample Rate and Resolution: Analog Playback Sample Rate and Resolution: 44. 1K/ 48K/ 88. 2K/ 96K/ 176. 4K/ 192KHz@ 16/24bit Analog Recording Sample Rate and Resolution: 44. 1K/ 48K/ 88. 2K/ 96KHz @ 16/24bit S/PDIF Digital Output: 44. 1K/ 48K/ 88. 2K/ 96K/ 176. 4K/ 192KHz@ 16/24bit ASIO 2. 2 Driver Support : 44. 1K/ 48K/ 96K/ 192KHz @ 24/32bit Connectivity: Analog Output: 5x 3. 5mm jack(1/8") (Headphone out / Front out/ Side out/ Center-Subwoofer out/ Rear out) Analog Input: 1x 3. 5mmjack (1/8") (Line-in/ Mic-in combo) Digital: 1x S/PDIF out (1 x Optical (Toslink)) Special Features: Sonic Studio Operating System: Windows 10/ 8. 1/ 7 ( 32-bit/ 64-bit) Accessories: ‹ 1xS/PDIF optical adaptor 1xDriver CD 1xQuick start guide
Full Product Specifications: Click to view
Audio Processor Manufacturer: C-Media
Audio Processor Model: 6632AE
Host Interface: PCI Express
Signal to Noise Ratio (SNR): 110 dB
