3Pcs TFT LCD Display Screen Compatible with for Arduino (1.28 Inch 240×240) Round Full Color HD IPS Full View RGB Touching Display GC9A01 Driver Chips 7 Pin SPI Interfac Welding Pins

Price: $16.79
(as of Feb 11, 2026 13:26:25 UTC – Details)


TFT LCD display
Compatible with Arduino (1.28-inch 240×240 pixels) round full-color HD IPS full-view RGB touch display, using GC9A01 driver chip, 7-pin SPI interface welding pin

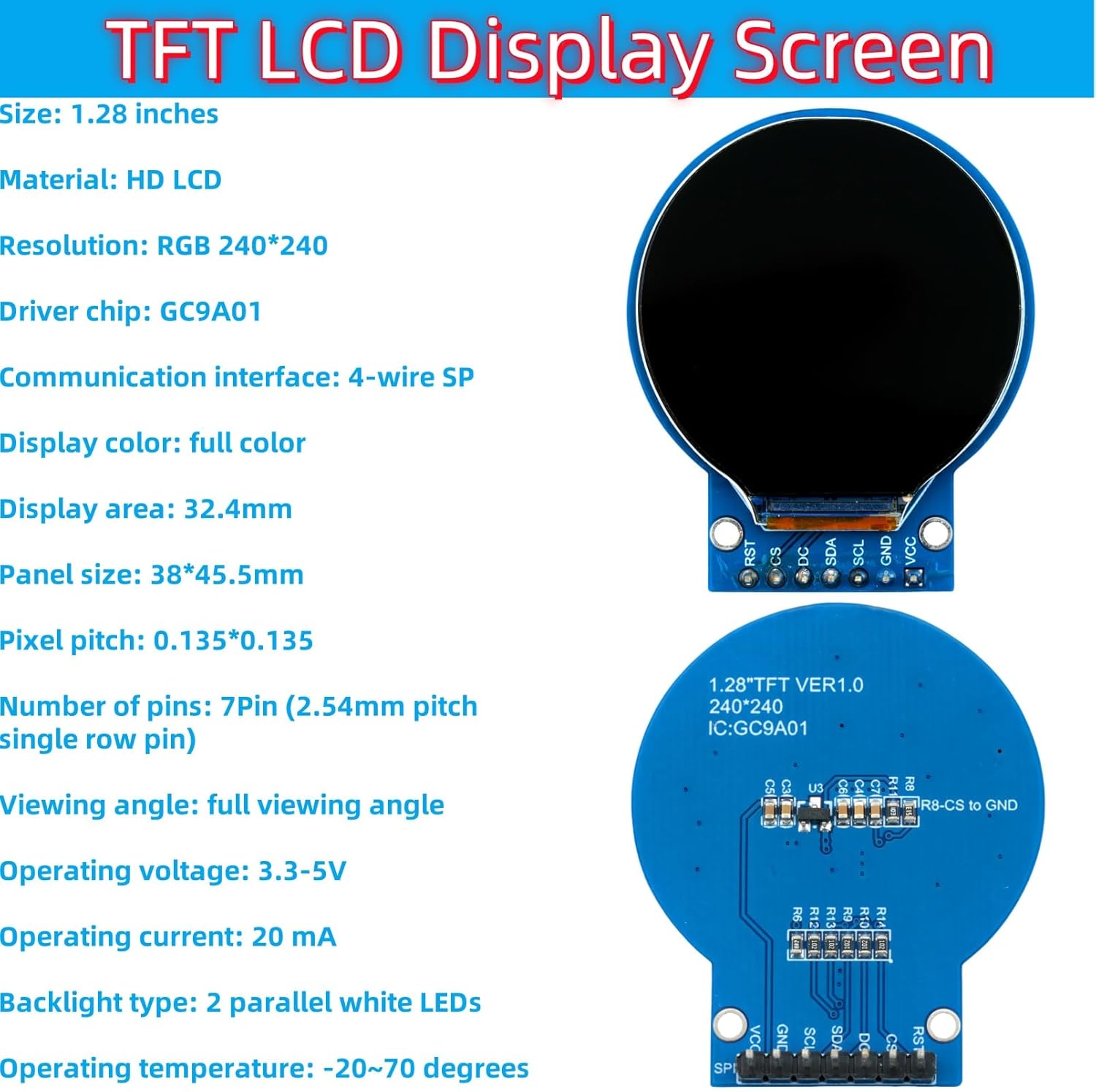

Parameters:
Size: 1.28 inches
Material: HD LCD
Resolution: RGB 240*240
Driver chip: GC9A01
Communication interface: four-wire SP interface
Display color: full color
Display area: 32.4mm
Panel size: 38*45.5mm
Pixel pitch: 0.135*0.135
Number of pins: 7Pin (2.54mm pitch single row pin)
Viewing angle: full viewing angle
Operating voltage: 3.3-5V
Operating current: 20 mA
Backlight type: 2 white LEDs in parallel
Operating temperature: -20~70℃
Pin description:
GND: Ground pin, used to connect the negative pole of the power supply to provide a reference potential for the circuit
VCC: Power input pin, connected to a 5V or 3V power supply, to provide the power required for the LCD to work
SCL: SPI bus clock signal pin, used to synchronize data transmission and control data to be transmitted bit by bit under the action of the clock pulse
SDA: SPI bus write data signal pin, through which the main controller writes data to the LCD, such as display content, control instructions, etc.
RES: LCD reset signal pin, usually low level is valid. When this pin receives a low level signal, the LCD will return to its initial state
DC: LCD register/data selection signal pin. When the high level is selected, the register is used to write control instructions to the LCD register; when the low level is selected, the data is used to write display data to the LCD
CS: LCD chip select signal pin, low level enable. When the pin is low, the LCD is selected and the main controller can communicate with it; when the high level is high, the LCD is in a non-selected state and does not respond to the main controller’s instructions and data
TFT LCD Display Screen Module：3Pcs 1.28 Inch 240×240 Full Color HD IPS Full View RGB Touching Display Module
Overall Dimensions：37.5*45*3.2mm；Display size：35.3*35.3mm
Drive Voltage：3-5V；Operating temperature：-20 to 70°C
Viewing angle：IPS Full Viewing Angle；Color：Full Color RGB
Driver Chip：GC9A01；Interface：SPI
Display: Touchable
