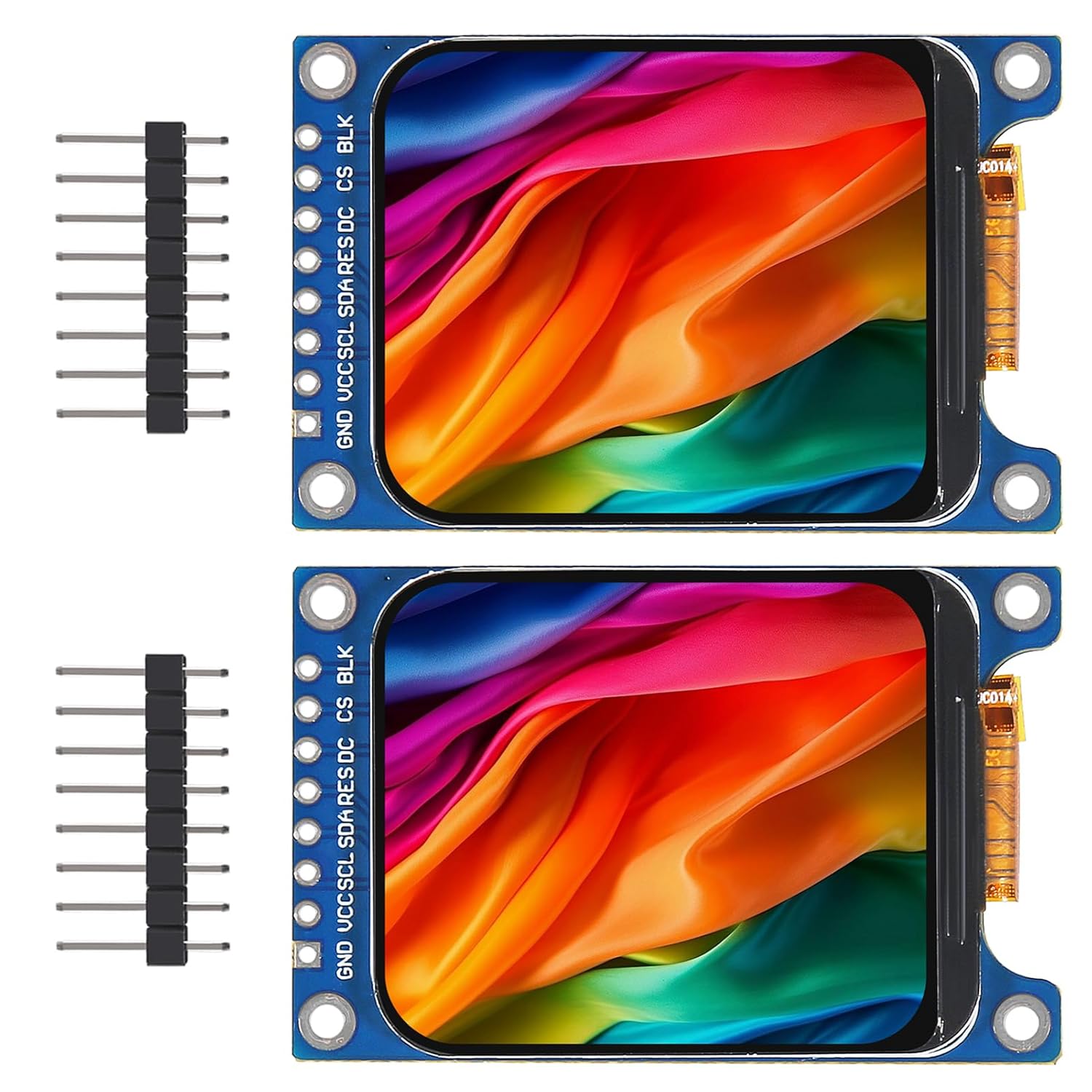

2pcs 1.69″ HD IPS TFT LCD Display Module 240×280 RGB LCD Screen 3.3V ST7789 Drive SPI Interface 8pin Full Color for Arduino DIY

Price: $12.99
(as of Feb 11, 2026 14:41:14 UTC – Details)


Features:
Size: 1.69-inch IPS color LCD
Resolution: 240(H)RGB x280(V)
Interface Type: SPI Interface
Control Chip: ST7789V2
Highlights: HD IPS, display direction can be adjusted.
Display Color: Color
Display Area: 27.972(H) x 32.634(V)
PCBA Size: 31.00(H) x 48.00(V) x 2.76 (D)
Pixel Pitch: 0.11655(H) x 0.11655(V)
Number of Pins: 8pin
Viewing Angle: Full Viewing Angle
Operating Temperature: -20~70 degrees Celsius
Logic Voltage: 3.3V
Backlight Type: 3 White LED Parallel
Brightness: 480 (TYP)Cd/m2
Weight: 8g
Connection: 2.54mm pitch single row of pins

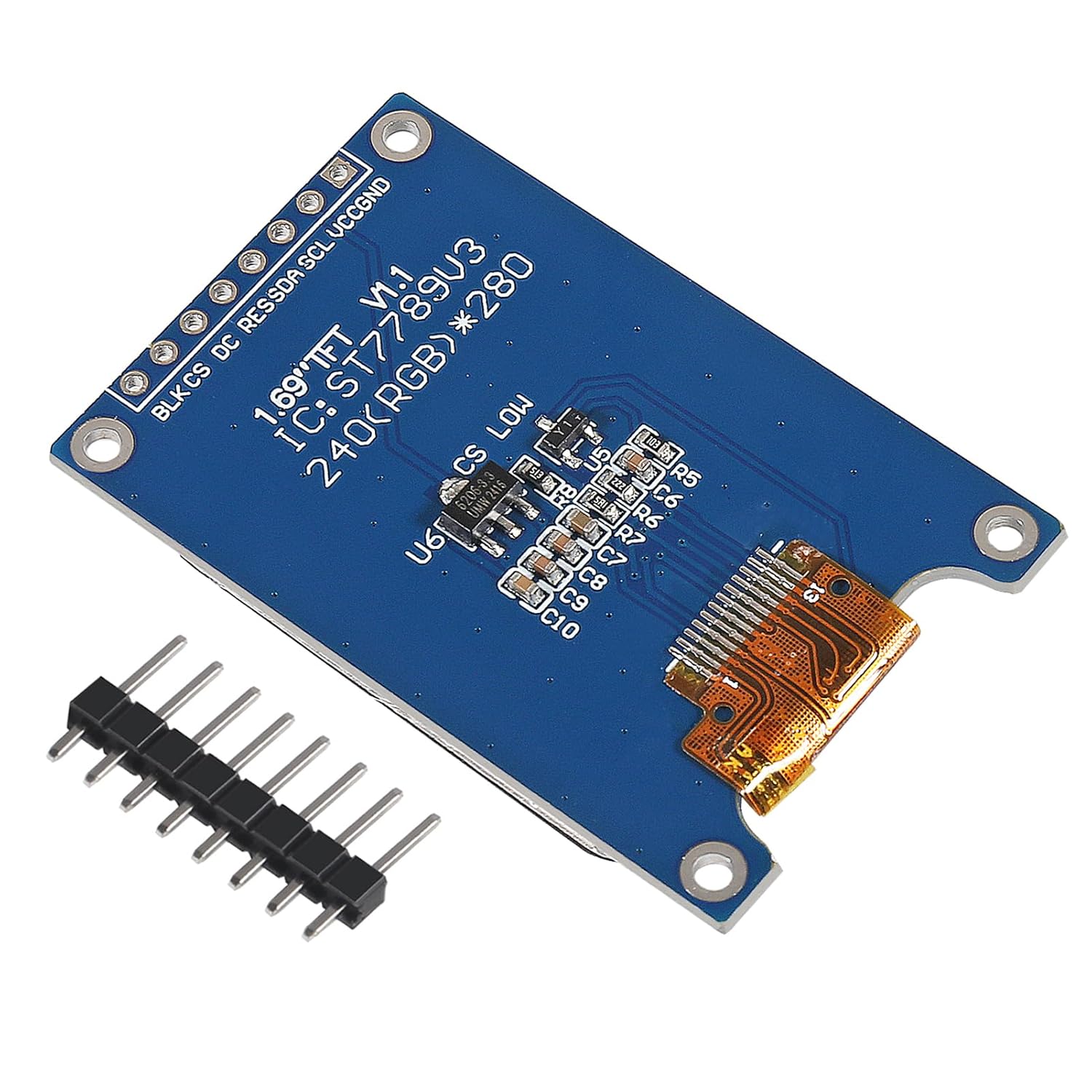

Pin Description：
GND: Power ground
VCC: Power Positive 3.3V
SCL: SPI clock line
SDA: SPI data line
RES: LCD reset
DC: LCD data/command select pin
CS: LCD display chip select signal, active low
BLK: Backlight control switch, backlight on by default, low level off the backlight
★Size: 1.69-inch IPS color LCD; Resolution: 240(H)RGB x280(V); Interface Type: SPI Interface; Control Chip: ST7789V2
★Highlights: HD IPS, display direction can be adjusted; Display Color: Color; Display Area: 27.972(H) x 32.634(V); PCBA Size: 31.00(H) x 48.00(V) x 2.76 (D); Pixel Pitch: 0.11655(H) x 0.11655(V)
★Number of Pins: 8pin; Viewing Angle: Full Viewing Angle; Operating Temperature: -20~70 degrees Celsius; Connection: 2.54mm pitch single row of pins
★Logic Voltage: 3.3V; Backlight Type: 3 White LED Parallel; Brightness: 480 (TYP)Cd/m2; Weight: 8g
★Pin Description: GND: Power ground; VCC: Power Positive 3.3V; SCL: SPI clock line; SDA: SPI data line; RES: LCD reset; DC: LCD data/command select pin; CS: LCD display chip select signal, active low; BLK: Backlight control switch, backlight on by default, low level off the backlight
