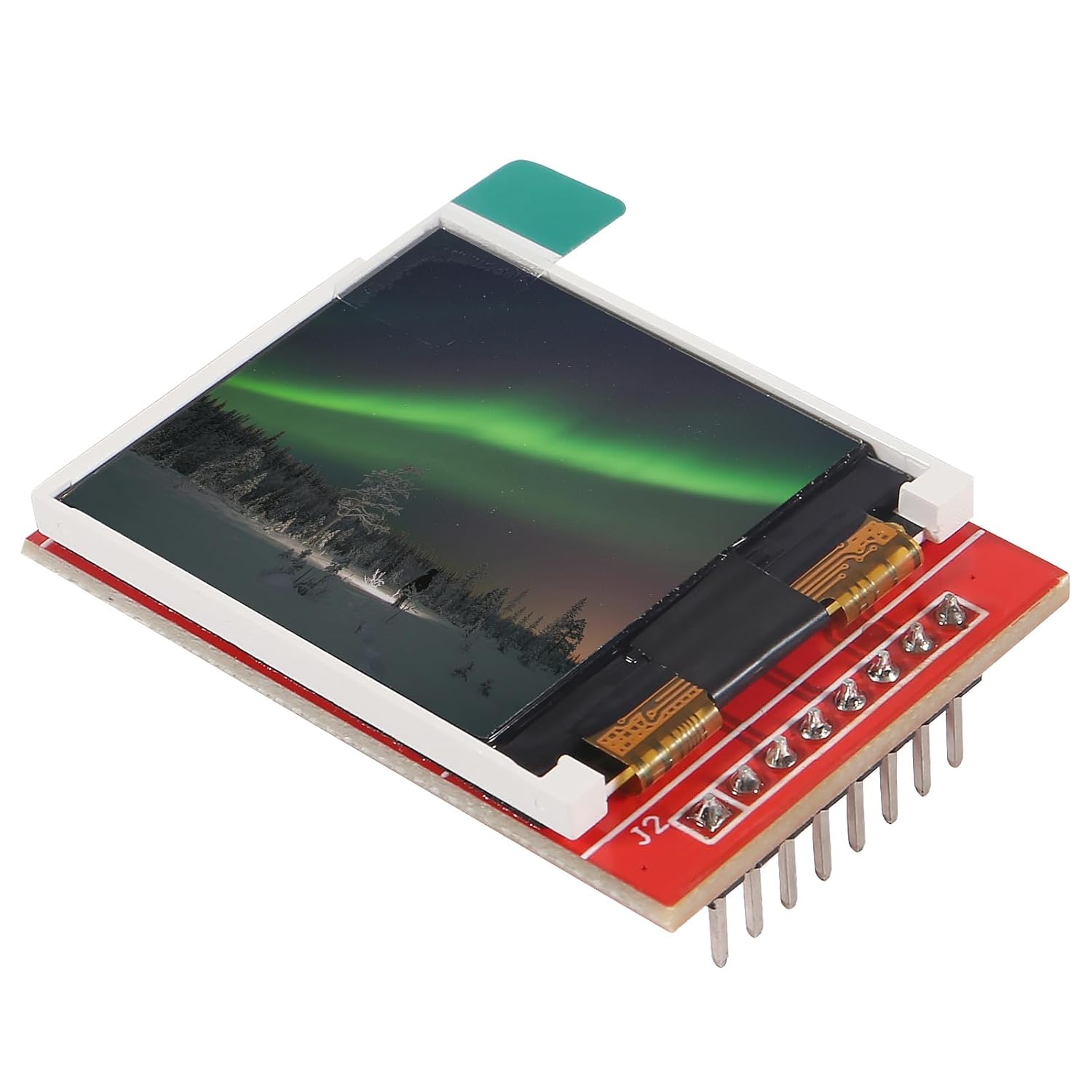

2pcs 1.44″ SPI TFT LCD Display Screen Module ST7735 128×128 TFT LCD Screen Shield 3.3V RGB 65K 4-Wire for Arduino
Price: $13.99
(as of Feb 11, 2026 21:43:06 UTC – Details)
Specifications:
Display Color: 16BIT RGB 65K color

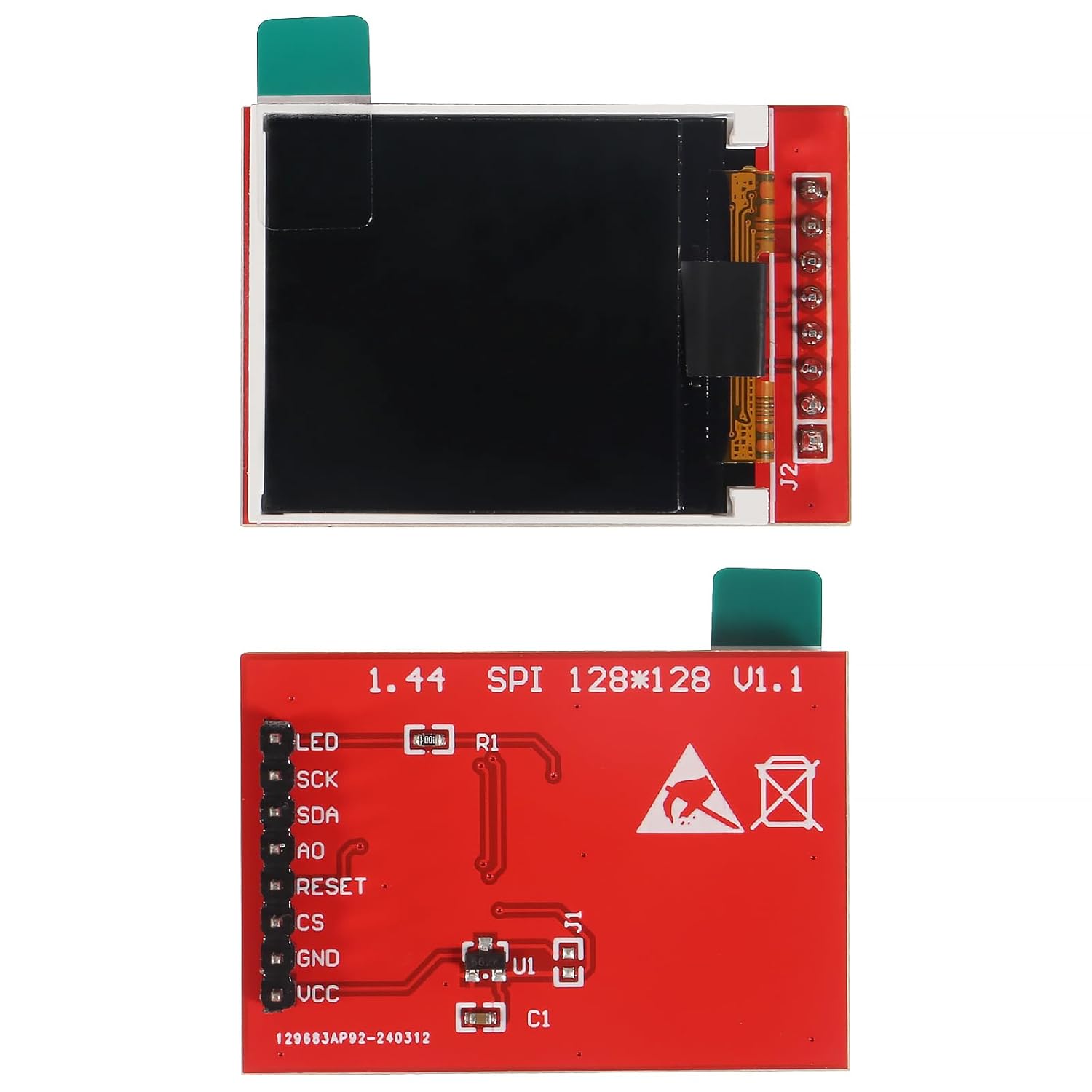

Module Interface: 4-wire SPI interface
Size: (PCB Module)31.49×43.95mm, (Active Area)26.2×27.2mm
Operating Environment: -20℃~60℃, 5V/3.3V
Feature:
1.44-inch color screen,support 16BIT RGB 65K color display,display rich colors.
Using the SPI serial bus, it only takes a few IOs to illuminate the display.
With SD card slot for convenient function expansion.
★1.44 inch spi does NOT have touch.
★1.44-inch color screen,support 16BIT RGB 65K color display,display rich colors.
★1.44″ display is compatible with u no, mega-2560, C51(stc89c52rc, stc12c5a60s2), STM32(stm32f103rct6, stm32f103zet6, stm32f407zgt6, stm32f 429igt6).
★3.3 volt screen, so it will not work without resistors on a 5v device.
★If you’re using a 5v microcontroller then four 560 Ohm, 680 Ohm or 1k Ohm resistors are needed for the data lines SCK, SDA, AO, and CS, to pull the voltage down from for Arduino pins.
